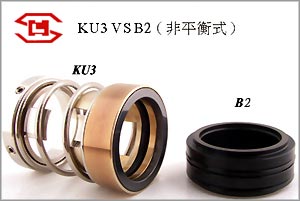

TYPE KU3 耐高黏度、多沉積物流體用化工機械軸封
ASSISTANT HIGH VISCOSITY,
HIGH SEDIMENT LIQUID CHEMICAL MECHANICAL SEAL |
 |
＊TYPE KU3 適用範圍 suitable in：
適用軸徑 Applied axle diameter
|
 20~100 mm |
| 最大壓力 Maximum pressure |
12kg/ c㎡.G |
| 適用溫度 Applied temperature |
-20~+120℃ |
| 最高轉數 Maximum revolution |
15 m/sec |
＊結構特性解說 Structure Features：
| 1. |
單軸封式、雙軸向旋轉、非平衡型、單彈簧型。 |
| |
Single axle sealing, two axle direction revolving, unbalanced, single spring type. |
| 2. |
採用離合器原理驅動軸封，另提供強大的抗扭力矩力量。 |
|
Use clutch principle to drive seal, and also provide powerful tensional force. |
|
＊各部材質解說 Material of every part:：
主密封面
Main sealing face |
SIC、超硬合金。
SIC Extra-harness alloy |
彈簧材質
Spring material |
SUS系列不鏽鋼。
SUS series stainless steel |
固定側密封面
Fix-side sealing face |
SIC、高品質碳精。
SIC high quality carbon |
其它金屬
Other metal |
SUS系列不鏽鋼。
SUS series stainless steel |
第二道密封
Sealing elasticity |
合成橡膠O-型環
synthetic rubber O-ring |
固定側密封環
Fix-side sealing ring |
B1、B2、B3、B4 |
紅體字=標準組合 / 黑體字=可以組合(特殊情況)
Red characters = Standard combination / Black characters = Can combine (special situation.)
|
|
＊密封流體 Fluid for sealing：
| |
結晶性酸、鹼、鹽類、高黏度油、多沉積物水、碳氫化合物等等。針對高黏度及易形成沉積物的流體所設計。 |
| |
Crystal acid, alkaline, saline, high viscous oil, high sediment water, carbon hydrogen, etc. Designed for high viscosity and easily formed sediment liquid. |
| |
|
|
|
|
| |
|
|
