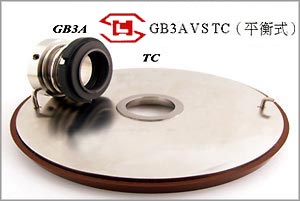

| TYPE GB3A 高流量食品級泵浦專用機械軸封 HIGH–FLOW FOODS PUMP CHIEMCIAL MECHANICAL SEAL . |
 |
＊TYPE GB3A適用範圍 suitable in：
適用軸徑 Applied axle diameter
|
 3/4" ~1.3/4" inches |
| 最大壓力 Maximum pressure |
7kg/ c㎡.G |
| 適用溫度 Applied temperature |
-10~+120℃ |
| 最高轉數 Maximum revolution |
20 m/sec |
＊結構特性解說 Structure Features：
| 1. |
單軸封式、外裝式、雙軸向旋轉、平衡式、單彈簧型。 |
|
Single axle sealing, two axle direction revolving, balanced, single spring type. |
| 2. |
雙軸封式型號：GB3B，詳細資料請本公司工程部 |
|
Two axle seal model:GB3B, contact our engineering department for further information. |
|
＊各部材質解說 Material of every part:：
| 主密封面 Main sealing face |
高品質碳精
high quality carbon
|
彈簧材質 Spring material |
SUS系列不鏽鋼。
SUS series stainless steel |
| 固定側密封面 Fix-side sealing face |
SIC、超硬合金。
SIC Extra-harness alloy
|
其它金屬 Other metal |
SUS系列不鏽鋼。
SUS series stainless steel |
| 第二道密封 Sealing elasticity |
合成橡膠O-型環
synthetic rubber O-ring |
固定側密封環 Fix-side sealing ring |
TC |
紅體字=標準組合 / 黑體字=可以組合(特殊情況)
Red characters = Standard combination / Black characters = Can combine (special situation.)
|
|
＊密封流體 Fluid for sealing：
| |
結晶酸、鹼、鹽類、食品、油、多沉積物水、碳氫化合物等等。主要用途為食品級泵浦。 |
| |
Crystal acid, alkaline, saline, foods, oil, high sediment water, carbon hydrogen, etc. Widely used for goods pumps. |
| |
|
|
|
|
| |
|
|
