| TYPE FL-111L 水泵浦用機械軸封 WATER PUMP CHIEMCIAL MACHNICAL SEAL |
 |
＊TYPE FL-111L適用範圍 suitable in：
適用軸徑
Applied axle diameter
|
 10~55mm |
最大壓力
Maximum pressure |
7kg/ c㎡.G |
適用溫度
Applied temperature |
-20~+100℃ |
最高轉數
Maximum revolution |
5 m/sec |
| TYPE FL-N2A |
3/8~-2.1/2" inches |
|
＊結構特性解說 Structure Features：
| 1. |
單軸封式、雙軸向旋轉、非平衡式、單彈簧型。 |
| |
Single axle sealing, two axle direction revolving, unbalanced, single spring type |
| 2. |
伸縮囊迫緊不僅具有密封功能，同時也利用其固定在軸上的力量驅動主密封面。 |
| |
Extraction bag not only has sealing feature, but also can use its force fixed on axle to drive main sealing face. |
| 3. |
改裝成雙軸封式時，適用值隨之改變。詳細資料請諮詢本公司工程部。 |
| |
when altered to two axle seal, the applied value changes accordingly. For further information, contact our engineering department. |
＊各部材質解說 Material of every part:：
| 主密封面 Main sealing face |
高品質碳精。
high quality carbon |
彈簧材質 Spring material |
SUS系列不鏽鋼。
SUS series stainless steel |
| 固定側密封面 Fix-side sealing face |
陶瓷、超硬合金。
porcelain, extra hardness alloy |
其它金屬 Other metal |
SUS系列不鏽鋼。
SUS series stainless steel |
| 第二道密封 Secondary Sealing |
合成橡膠伸縮囊形。
synthetic extraction bag
|

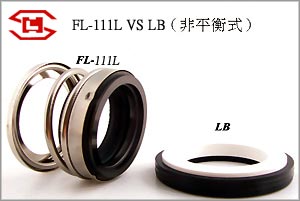

固定側密封環
Fix-side sealing ring |
(公制)LB
(公制)LC |
紅體字=標準組合 / 黑體字=可以組合(特殊情況)
Red characters = Standard combination / Black characters = Can combine (special situation.)
|
|
＊密封流體 Fluid for sealing：
| |
水、潤滑油等等。廣泛地使用在水用泵浦。 |
| |
Water, lubrication oil, etc. Widely used in water pumps. |
| |
|
|
|
|
|
|
