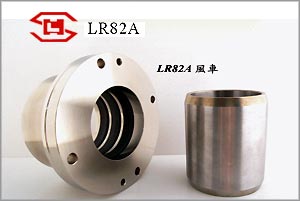

| TYPE LR82A 迷宮式機械軸封-風車 MAZE CHIEMCIAL MACHNICAL SEAL - WINDMILL |
 |
＊TYPE LR82A 適用範圍 suitable in：
適用軸徑 Applied axle diameter
|
 70~90 mm |
| 最大壓力 Maximum pressure |
5.16kg/ c㎡.A |
| 適用溫度 Applied temperature |
-10~+180℃ |
| 最高轉數 Maximum revolution |
10 m/sec |
＊結構特性解說Structure Features：
| 1. |
FLY-GIN SEALING軸承代表作，精密的加工製造及組裝，可將洩氣量減至0.05 atm。 |
| |
Fly-Gin Sealing bearing, precision production and assembly. The air leakage can be reduced to 0.05 atm. |
| 2. |
軸套尺寸可依客戶需求作改變。 |
| |
Axle cover can be made according to customer's request. |
|
＊各部材質解說 Material of every part:：
| 軸套Axle cover |
超硬合金。
extra hardness alloy |
其它金屬 Other metal |
SUS系列不鏽鋼。
SUS series stainless steel |
| 浮動環floating ring |
高品質碳精。
high quality carbon |
|
＊密封對象 Sealing object： 熱空氣 (Hot air ) |
| |
|
