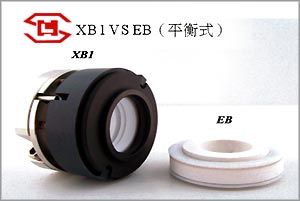

TYPE XB1 PTFEBELLOW 耐強腐蝕性流體用化工機械軸封
PTFE BELLOW CORROSION RESISTANCE FLUID CHIEMCIAL MACHNICAL SEAL |
| |
|
 |
＊TYPE XB1 適用範圍 suitable in：
適用軸徑
Applied axle diameter
|
 20~100 mm |
| 最大壓力
Maximum pressure |
5.5kg/ c㎡.G |
| 適用溫度
Applied temperature |
-10~+120℃ |
| 最高轉數
Maximum revolution |
10 m/sec |
＊結構特性解說Structure Features：
| 1. |
單軸封式、外裝式、雙軸向旋轉、平衡式、單彈簧型。 |
| |
Single axle sealing, external type, two axle direction revolving, balanced, single spring type. |
| 2. |
承受壓力因尺寸大小而有所改變。 |
| |
Under the pressure, the size can change. |
|
＊各部材質解說 Material of every part:：
主密封面
Main sealing face |
高品質碳精。
high quality carbon |
彈簧材質
Spring material |
HAST C |
固定側密封面
Fix-side sealing face |
SIC、超硬合金。
SIC Extra-harness alloy |
其它金屬
Other metal |
SUS系列不鏽鋼。
SUS series stainless steel |
第二道密封
Secondary Sealing |
合成樹脂伸縮囊形
synthetic extraction bag
|
固定側密封環
Fix-side sealing ring |
EB |
紅體字=標準組合 / 黑體字=可以組合(特殊情況)
Red characters = Standard combination / Black characters = Can combine (special situation.)
|
|
＊密封流體 Fluid for sealing：
| |
強腐蝕性流體(硫酸、硝酸、磷酸、鹽酸類、苛性鈉及有機溶劑等)。 |
| |
Strong corrosion fluid (sulfuric acid, nitric acid, phosphorous acid, hydrochloric acid, caustic sodium and organic solvent, etc.) |
| |
|
|
|
|
|
|
